Coriolis Flow Meter

Our range of Coriolis mass flow meters is designed to suit your need to measure almost any fluid, across any application. Built on the Coriolis principle, these meters measure the mass of the fluids directly, rather than volume. This means they do not require compensations for factors such as temperature and pressure which impact volume and in turn, impact the accuracy of measurement.

Our Coriolis flow meter consists of two parallel tubes that are made to oscillate using a magnet. These oscillations are recorded by sensors fitted at the inlet and outlet of each tube. In a no-flow state, the oscillations are synchronized, i.e. in phase with each other, since there is no mass exerting any force on the tubes. On the other hand, any fluid, or gas flowing through the tubes generates Coriolis forces, causing the tubes to twist in proportion to the mass flow rate of the medium.

The magnitude of this twisting is measured by the sensors as a phase shift between the inlet and outlet of the tubes; this phase shift is used to measure the mass flow rate of the medium.

Accuracy	±0.05%, ±0.1%, ±0.2% or ±0.5%
Density Accuracy	0.001g/cm3 (Consult Factory for Better)
Repeatability	± 0.05% (for 0.1% accuracy), ± 0.1% (for 0.2% accuracy), ±0.25% (for 0.5% accuracy) or ± 0.05% (for 0.05% accuracy)
Sensor Type	Standard, U Tube, Nano, Super Bend, Straight Tube, Dual Path
Process Media	Liquid or Gas
Transmitter	Digital type/Analog type
Power Supply	18-28VDC, 85-220VAC
Maximum Pressure	For 3/8” to ½”	3600psi (25MPa),
	For 1”	1500psi (10MPa)
	For 1 ½” to 2”	1500psi (10MPa)
	For 3” to 4”	900psi (6MPa)
	For 6” to 24”	580psi (4mpa)
Signal Output	4-20 mA and Pulse , Optional: HART, Modbus RS485 or Ethernet
Process Connections	DIN, ANSI Flanges, NPT, Flare, Tri-Clamp
Electronics	Direct Mount or Remote Mount
Diagnostic Functions	Reset Totalizer
Graphic Display	OLED
Operating Elements	3 optical keys for operator
Additional Features	Low Flow Cut-off, Oil and Water Content Analysis, Zero Calibration, Flow Calibration, Long-Term Stability, Zero Point Adjustment, Conforms IEC 61362 (Industrial) EMC Directive, Useful for all type of sensors i.e. U-Tube, Nano, Standard
Temperature Range	Direct Mount	-60°F to 200°F (-50°C to 125°C)
	Remote Mount	-300°F to 400°F (-180°C to 200°C)

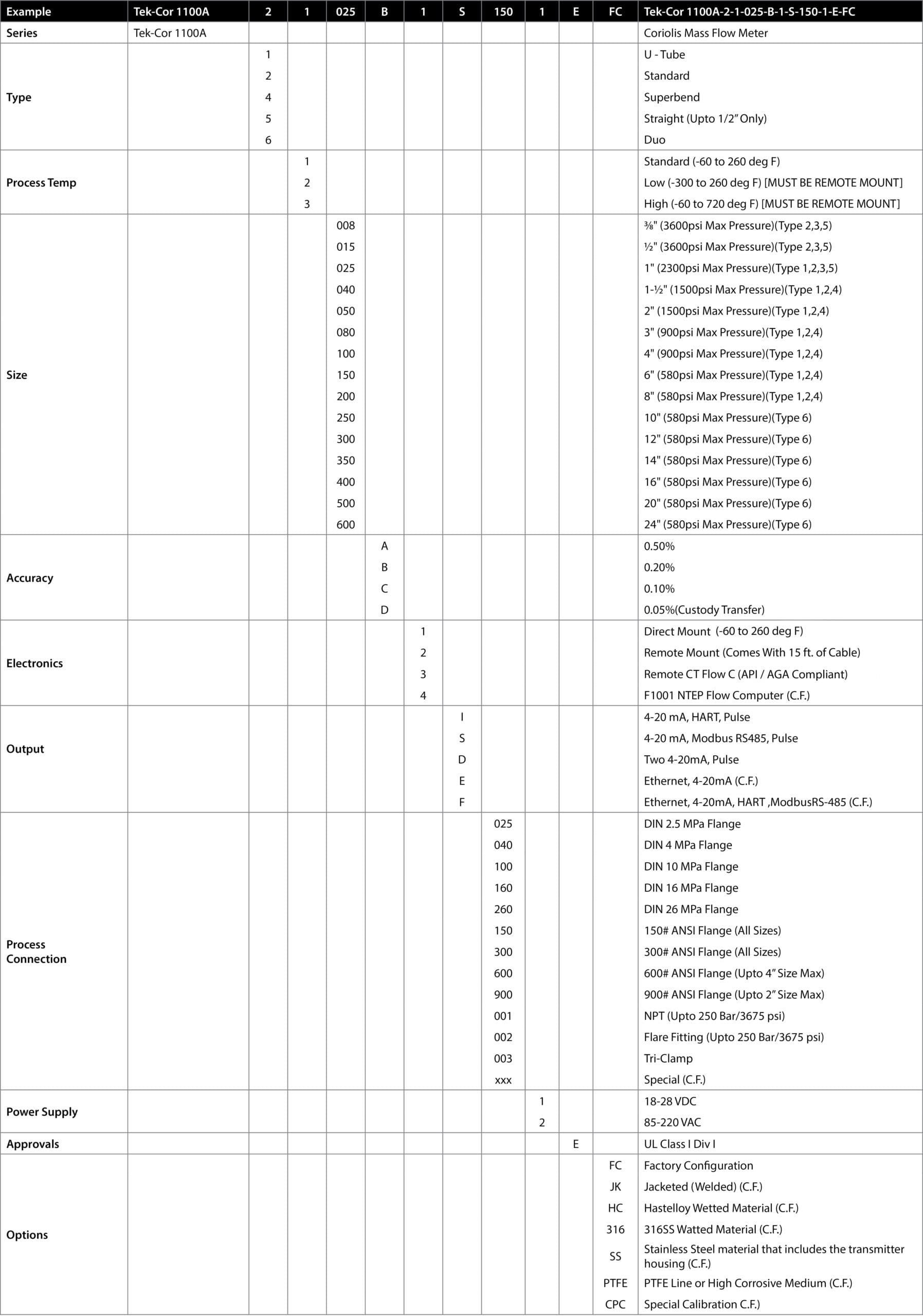

TEK-COR 1100A SERIES CORIOLIS FLOW METER
