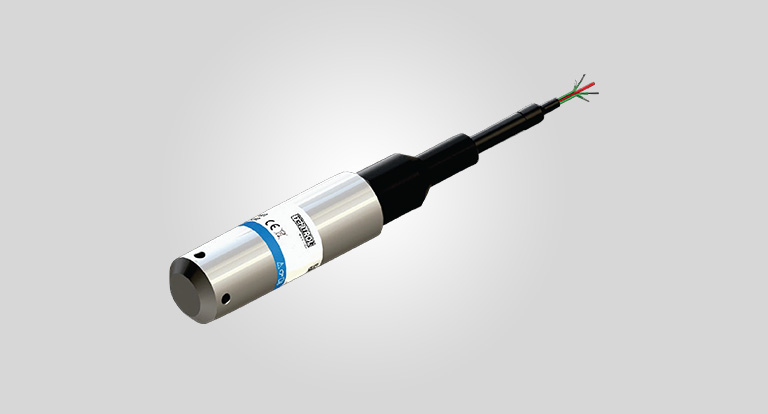

TEK-SUB 4800E OEM SUBMERSIBLE LEVEL TRANSMITTER
The Tek-Sub 4800E OEM submersible level transmitter is specifically designed for immersion-based hydrostatic level measurement in aggressive field conditions. Featuring a precision of ±0.25% FS, it supports continuous monitoring in depths up to 120 meters H2O. The device complies with IP68 standards, ensuring long-term operational reliability in fully submerged installations.
Features
Specification
Document
Features
- Measuring ranges from 1 to 30 Psi (0.7 to 21 mH2O)
- IP68, Submersible level measurement
- Simple Level measurement
- Accuracy: ±0.25%FS (Typ.)
- Calibrated and temperature compensated
- Stainless Steel pressure sensor
- Output 4…20mA, DC1…5V, DC 0.5…4.5V, MODBUS RTU
Specification
| Nominal Pressure | 1 to 30 Psi (0.7 to 21 mH2O) |
| Accuracy | 0.25%FS@25°C(Typ.) |
| Operating Temperature | -10 to 50°C |
| Compensated temperature range | -10 to 50°C |
| Temperature Coeffitient-Zero | ±0.75[Typ.], ±1.5[Max.] |
| Temperature Coeffitient-Span | ±0.75[Typ.], ±1.5[Max.] |
| Long Term Stability | 0.2% FS / Year |
| Output Signal |
|
| EMC Test | IEC61000-6-2/IEC61000-6-3 |
| Vibration | 20g Force (20 to 2000Hz) |
| Shock | 100g force (10ms) |
| Cycles | 10×105 cycles |
| Insulation Resistance | 100 MΩ@100VDC |
| Housing/Diaphragm | 316 stainless steel |
| Cable | PUR, PE, PTFE |
| Oil Filling | Silicone Oil |
| Protection | IP68 |
| Protection Cap | Stainless Steel |
| Reverse Polarity Protection | No damage – no function |
| Weight | ~250g (without cable) |
