TEK-VOR 1300XP SERIES EXPLOSION PROOF INLINE VORTEX FLOW METER
Tek-Trol’s Tek-Vor 1300XP Explosion-Proof Inline Vortex Flow Meter utilizes three primary sensing elements including, vortex shedding velocity sensor, an RTD temperature sensor, and a solid-state pressure transducer to measure the mass flow rate of gases, liquids and steam. Systems that use external process measurements to calculate mass flow may not provide adequate compensation for the fact that process conditions can change radically between the point of velocity measurement and the point where upstream or downstream pressure and temperature measurements are being made. Because the Tek-Vor 1300XP Explosion-Proof Inline Vortex Flow Meter measures all of these parameters in a single location, it delivers a more accurate process measurement. Integrating multivariable output capability with a single line penetration also simplifies system complexity and helps reduce initial equipment cost, installation cost and maintenance costs. The product line is available with a wide range of options and meter configurations to meet your specific application requirements.
Features
Specifications
Documents

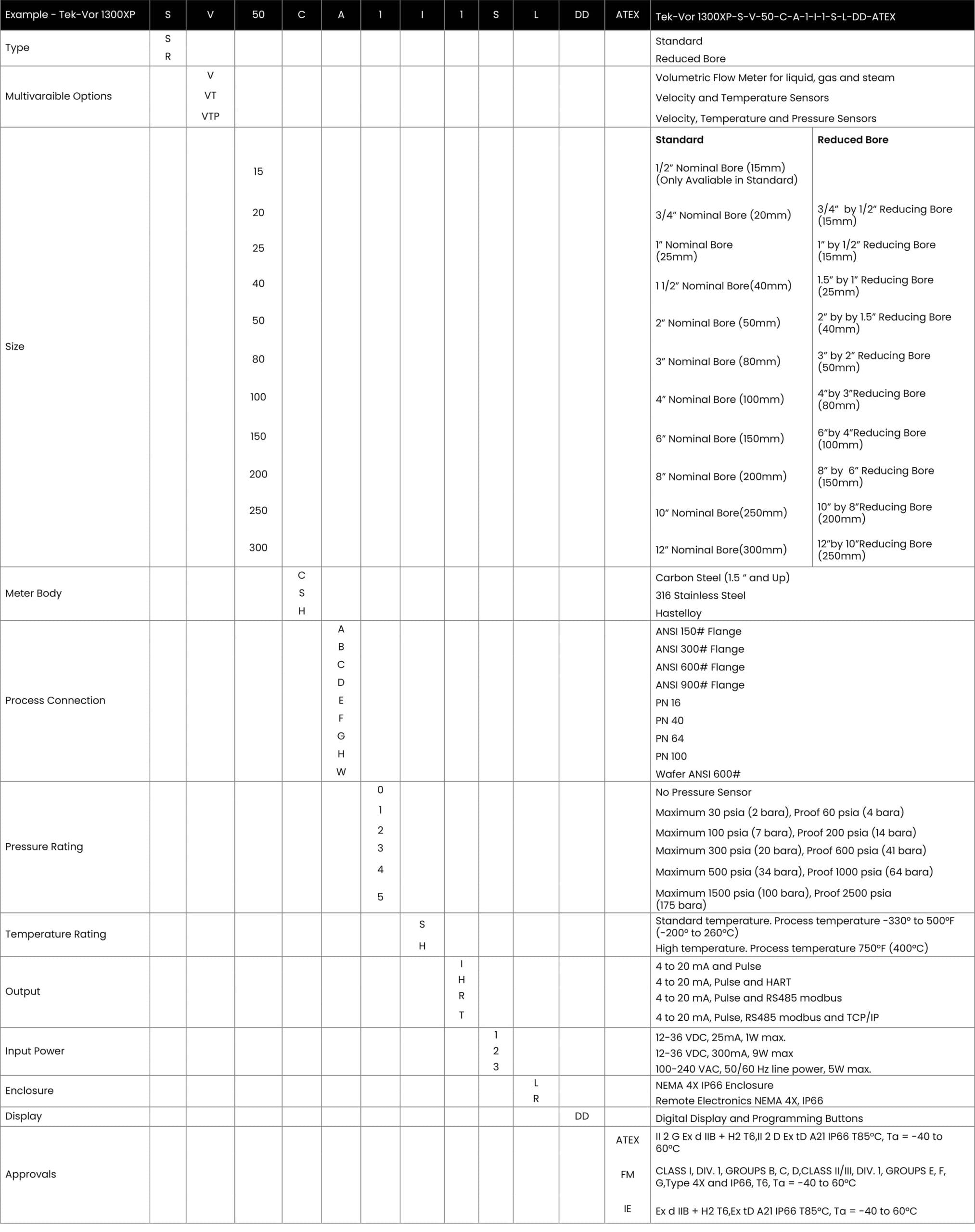

Model chart
Drawings
Features
- Volumetric or mass flow monitoring of most liquids, gases, and steam.
- Multivariable meter delivers mass flow, temperature, pressure, and density readings from a single installed device and reduces initial cost, installation cost and cost-of ownership over the lifetime of the instrument.
- Mass flow equations – real gas, ideal gas, AGA 8, API 2540.
- Compensated mass flow reading of liquids, gases, and steam.
- Energy Monitoring – ability to compute and output energy use.
- Easy to install and commission.
- Reliable – no moving parts, no fluid to sensor contact.
- High accuracy with rangeability up to 100:1.
- Temperature up to 750°F.
- Pressure up to 1500psig.
- Inline configuration for pipes from 1/2”-12” DN15 to DN 300.
- Field configurable ranges, outputs and displays.
- Remote electronics option available for use in harsh environments or locations with limited access.
- 4-20mA loop–powered Mass Meter design saves on energy costs.
- HART protocol communications – Standard.
- Modbus, BACnet communications available.
- FM, FMC, ATEX, IECEx Approved.
Specifications
| Accuracy | Volumetric Flow Rate: ±0.7% of rate(for Liquids), ±1% of rate (for Gas or Steam); Mass Flow Rate: ±1% of rate (for Liquids), ±1.5% of rate (for Gas or Steam); Temperature: ±2°F (± 1°C) Pressure: ±0.3% of Full Scale Density: ± 0.3% of Reading (for Liquids), ± 0.5% of Reading (for Gas or Steam) |
|
| Repeatability | Mass Flow Rate: ±0.2% of rate Volumetric Flow Rate: ±0.1% of rate Temperature: ±0.2°F (±0.1°C) Pressure: ±0.05% of full scale Density: ±0.1% of reading |
|
| Stability | Mass Flow Rate: ±0.2% of rate Volumetric Flow Rate: negligible Temperature: ±0.9°F (±0.5°C) Pressure: ±0.1% of full scale Density: ±0.1% of reading |
over 12 months |
| Response Time | Adjustable from 1 to 100 seconds | |
| Operating Temperature | -40°F to 140°F (-40°C to 60°C) | |
| Process Temperature | -330°F to 500°F (-200°C to 260°C) | |
| Storage Temperature | -40°F to 185°F (-40°C to 85°C) | |
| Pressure Rating | Full Scale Operating Pressure: 30 to 1500psi (2 to 100bar) Maximum Over Range Pressure: 60 to 2750psi (4 to 175bar) |
|
| Output Signal | Analog: 4-20mA Alarm: Solid state relay, 40VDC Totalizer Pulse: 50 millisecond pulse, 40VDC Volumetric or Loop Powered Mass: One Analog, One Totalizer Pulse, HART Multivariable option: Up to Three Analog Signals, Three Alarms, One Totalizer Pulse, HART Multivariable option: Modbus, Ethernet, or BACnet process monitoring |
|
| Power Supply | DCL option: 12-36VDC, 25mA, 1W max, loop powered (single output) DCH option: 12-36VDC, 300mA, 9W max, (multiple outputs) AC option: 100-240VAC, 50/60Hz line power, 5W (multiple outputs) |
|
| Display | Alphanumeric 2 line x 16 character LCD digital display Six pushbuttons for full eld con guration Pushbuttons can be operated with magnetic wand without removal of enclosure covers Display can be mounted in 90° intervals for better viewing |
|
| Wetted Material | Standard 316L Stainless Steel, plus • Optional Carbon Steel or Hastelloy C • DuPont Te on® based thread sealant on models with pressure transducer |
|
| Approval | FM, FMC, ATEX, IECEx | |
