Wastewater Submersible Level Transmitter

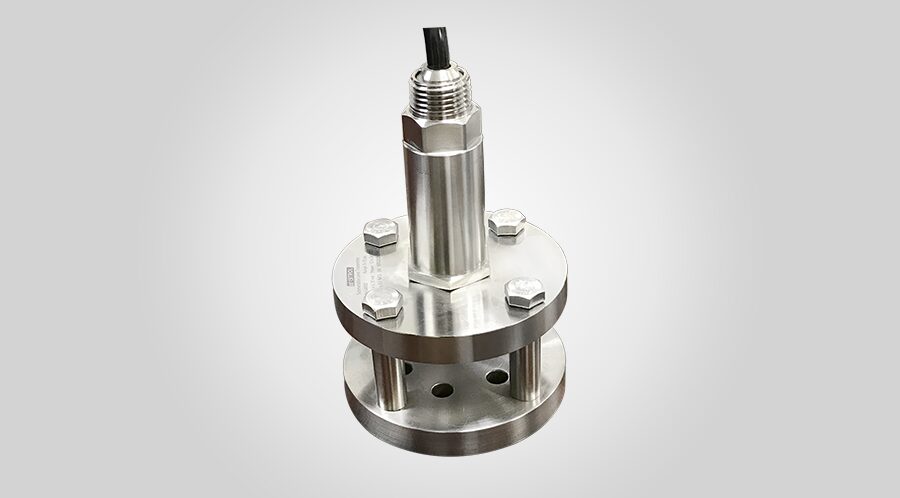

TEK-SUB 4800D SERIES WASTEWATER SUBMERSIBLE LEVEL TRANSMITTER
The Tek-Sub 4800D Wastewater Submersible Level Transmitter is exclusively designed for slurry and wastewater applications. Manufactured for precise level measurement, its clog-free silicon piezoresistive sensor determines liquid level without being affected by debris. Packaged in a stainless steel housing, the waterproof cable makes it ideal for long-term trouble-free service.The Tek-Sub 4800D is capable of real-time level measurement with several standard output signal options. The instantaneous level output is used for pump control to maintain the level or to report the real-time level status.
This high-performance level measurement device is available with several level ranges, custom cable lengths and materials, ensuring an ideal match for the application requirement.
Features
Specification
Document
Model Chart
Drawings
Approvals
Features
- Non-clogging sensor cage
- Completely sealed stainless steel housing
- No need for external adjustment and calibration
- Temperature Compensated
- No moving parts, low maintenance
- Reliable level measurements in demanding applications
- Measuring pressure ranges from 5 psig to 20 psig
- Accuracy: ±0.5% F.S.
Specification
| Pressure Range | 5 psig to 20 psig (3.5 mH2O to 14 mH2O), Optional ranges available |
| Pressure Type | Gauge (vented) |
| Over Pressure | 150% FS |
| Accuracy | 0.5% FS |
| Temperature Coeffitient-Zero | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Temperature Coeffitient-Span | ±0.75% FS (typ), ±1.5% FS (max) overcompensated temperature range |
| Long Term Stability | ±0.2% FS/year (typ.), ±0.3% FS/year (max.) |
| Output Signal | 4-20 mA, RS-485, 0.5-4.5 VDC |
| Power Supply (Vs) | 12 to 36 VDC |
| Load Resistance (RL) | RL<(Vs-12)/0.02A |
| Vibration | 10g-force (20-2000 Hz) |
| Shock | 100g-force (10 ms) |
| Cycles | 10×10⁶ cycles |
| Insulation Resistance | 100 MΩ/50 VDC |
| Compensated Temperature Range | 32 °F to 140 °F (0 °C to 60 °C) |
| Operating Temperature Range | -4 °F to 158 °F (-20 °C to 70 °C) |
| Storage Temperature Range | -40 °F to 257 °F (-40 °C to 125 °C) |
| Media Compatibility | All media compatible with 316 SS |
| Housing | 304 SS |
| Cable | PTFE or Polyurethane |
| Diaphragm | 316 SS |
| Oil Filling | Silicone oil |
| Net Weight | 8.8 lb (4000 g) |
