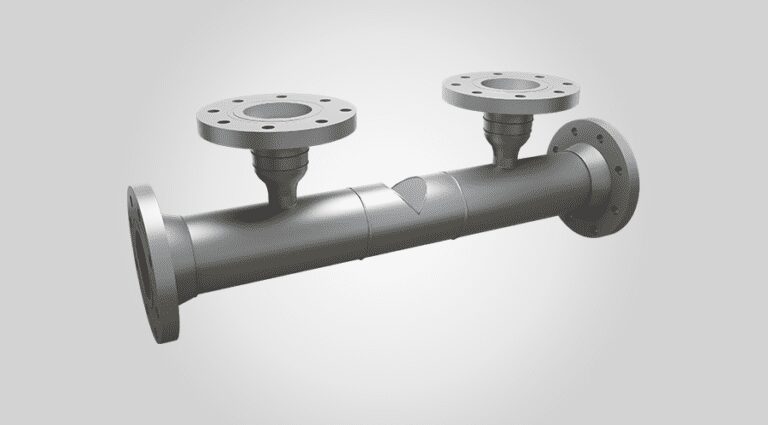

TEK-DP 1670A SERIES WEDGE
Tek-DP 1670A Wedge are differential pressure producing devices that are suitable for flow measurement for nearly all fluids and gases, especially for highly viscous, particle-laden and abrasive process applications. They offer excellent performance for the fluids having Reynolds no as low as 500 and work equally well for the fluids having Reynolds no up to several million.
Wedge stand out from the other primary flow elements due to their distinct construction. They allow bi-directional flow measurement as required in some applications.
Features
Specifications
Documents
Model Chart
Features
- Compact and robust design with no moving parts
- Bidirectional flow possible
- No clogging risk, self-cleaning
- Accurate flow metering for highly viscous fluids, slurries and suspended solids
- Minimal permanent pressure loss resulting in energy savings
- Accuracy ≤ ± 0.5 % of the actual flow rate (Calibrated)
- Repeatability 0.2 %
- Available for all pipe sizes and in a wide range of materials
Specifications
| Materials | Stainless Steel 304,316,321,347, Carbon Steel, Hastelly C or Monel, Other marials on request |
| Sizes | 2″ to 36″, Higher sizes on order |
| Pressure rating | 150 Psi to 2500 Psi |
| Operating Temperature | Standard at -20°F to 100 °F, optional -40 °F to 1200 °F |
| Process connections | ANSI B 16.5, Class 150 lbs to 2500 lbs |
| Viscosity | Up to 3000 Cp |
| Mounting Position | Parpendicular to the fluid flow direction |
| Mounting Style | Flange connection according to ANSI or DIN |
| Flange Face | Flat face, Raised face and Ring type joint |
| Installation Requirement | Minimum 5xD upstream and 2xD downstream |
