Explosion-Proof Temperature Transmitter
TEK-TEMP 2100A SERIES EXPLOSION-PROOF TEMPERATURE TRANSMITTER
Tek-Trol’s Tek-Temp 2100A Explosion-Proof Temperature Transmitter is a microprocessor-based high-performance transmitter. It has flexible sensor input and output, automatic compensation of ambient temperature and can configure various parameters. It also has a self-diagnostic function to determine the error in the instrument and alert the user.
Features
Specifications
Documents
Model chart
Features
- Automatic Compensation of Ambient Temperature
- Superior Performance & Reliability
- Field programmable push-buttons
- Setting Various Parameters: Zero/Span, Unit, Fail-mode, Trim, etc
- Digital Communication with HART® protocol
- Self-Diagnostic Function
- Fail mode function
- EEPROM Write functions
- LCD Screen and Housing rotation
Specifications
| Relative Humidity Range | 0% to 100% RH |
| Accuracy | ±0.3 of F.S. |
| Hysteresis | ±1% |
| Repeatability | ±0.05% of Span |
| Ambient Temperature Limits | -40 °F to 140 °F (-40 °C to 60 °C) |
| Storage Temperature | -40 °F to 176 °F (-40 °C to 80 °C) |
| Compensated Temperature | -40 °F to 185°F (-40 °C to 85 °C) |
| Power Requirements | 12 VDC to 45 VDC |
| Output Signal | 4 mA to 20 mA with HART® |
| Response Time | 15 s |
| Electrical and Housing Connections | ½” to 14″ NPT |
| Housing Material | Aluminium |
| Display | Optional 5 digit LCD display |
| Weight | 2.64 lb (1.2 kg) |
| Enclosure Rating | For Class 1, Division 1 |
| Agency Approvals | CE, FM |
Documents

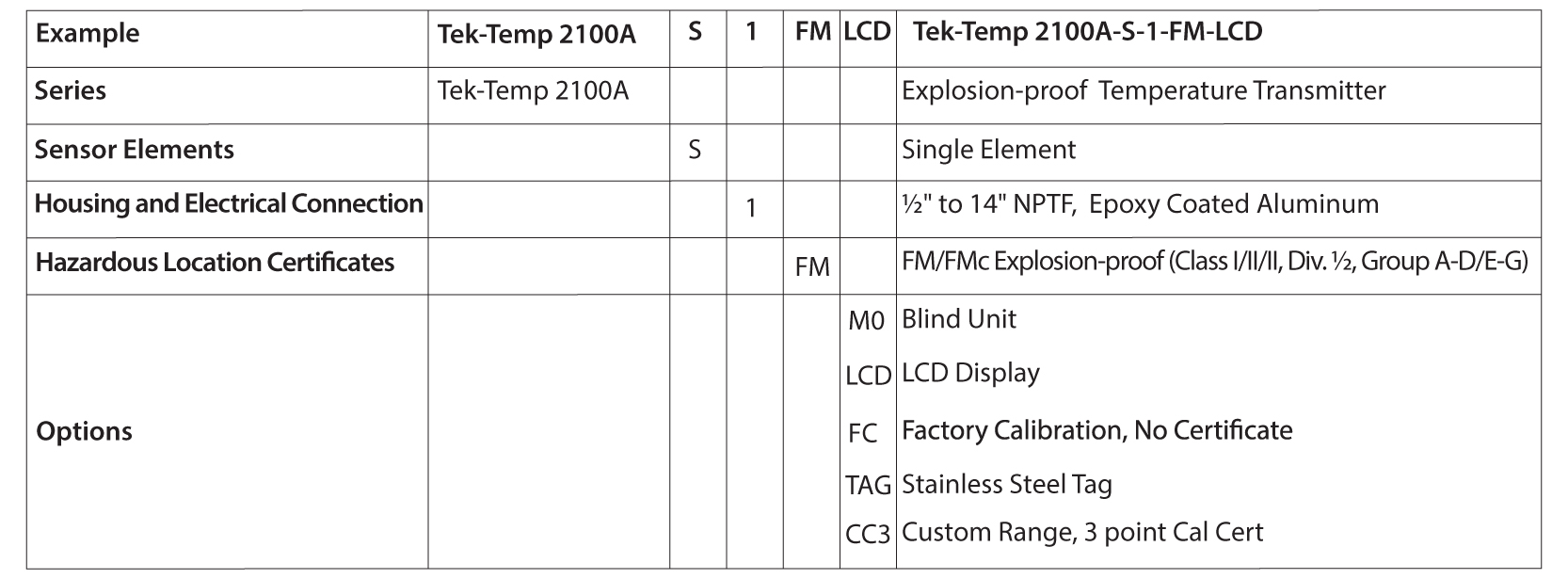

Model chart
